KIYEON E&C. thinks about the environment of Korea.

SCR Catalyst

Honeycomb Type

  • Through the technical joint venture of Germany's En-virontherm, DKC Corporation was established in Chengdu, Sichuan Province for Honeycomb type SCR catalyst production. We are the exclusive domestic supplier for Honeycomb type SCR catalyst. We have supplied 500 MW of the Taean Thermal Power Plant as well as SCR facilities such as SK General Chemical (Geocentric). In addition, we have developed Metal base support SCR catalysts through R&D projects and supplied them to LOTTE Chemical, Korea Zinc, and GS Power and other end users.
Pitch (mm) Application End User
3.3 Low dust application Clean fuel Power Plant
3.7 上同 Hybrid system
4.3 上同 Co-generation Power Plant
5 上同 -
6.1 High dust application Power Plant, Incinerator, Engine etc
6.5 上同 -
7 上同 Coal base Power Plant
7.4 上同 -
7.6 上同 -
8.2 上同 -
10 上同 -
11.9 上同 -
[ Variety of SCR catalysts and application ]

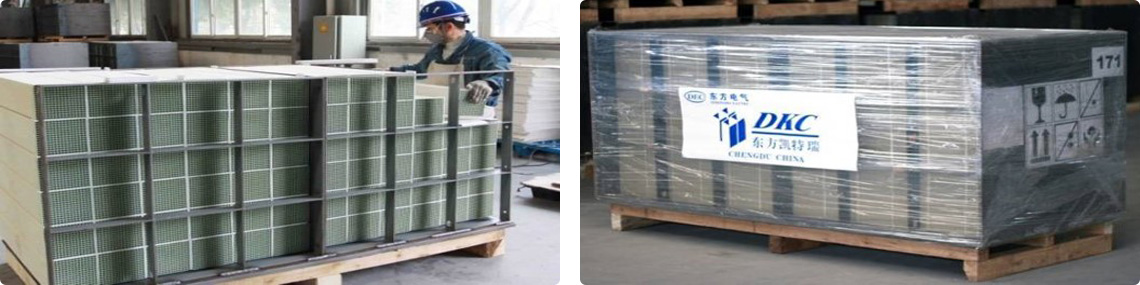

[ Module Packing ]
Characteristics of
KIYEON’s SCR catalyst
  • High conversion and efficiency
  • Low SO₂/SO₃ conversion
  • Low NH₃ slip
  • Wide range of operation temperature
  • High attrition strength
  • High strength high efficiency (HSHE)
    technology

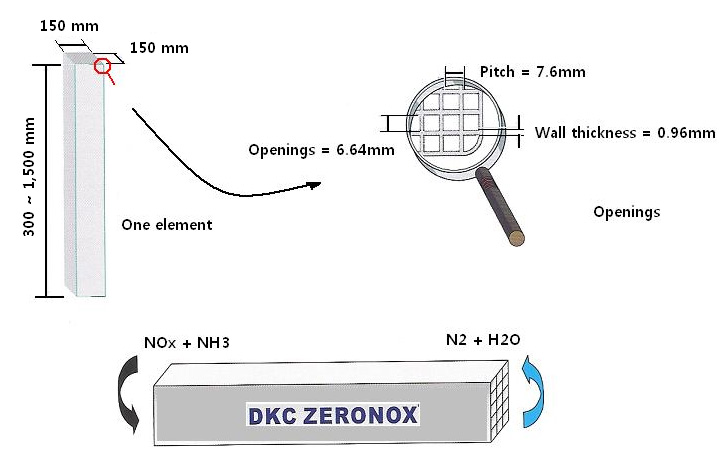

  1. SCR catalyst element

  2. Module

  3. SCR reactor

Newly developed Metal support base SCR Catalyst

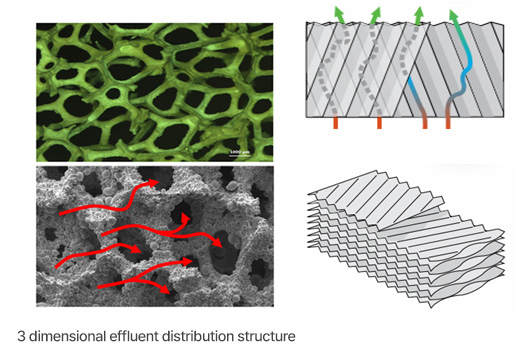

[Advantage of Metal support catalyst]

  • Maximize contact between effluent gas and catalyst surface
  • Maximize conversion of NOx
  • Minimize SCR catalyst volume and weight
    (under 50% compared it with Honeycomb type SCR catalyst)

Metal foam base (LNG Fuel only)

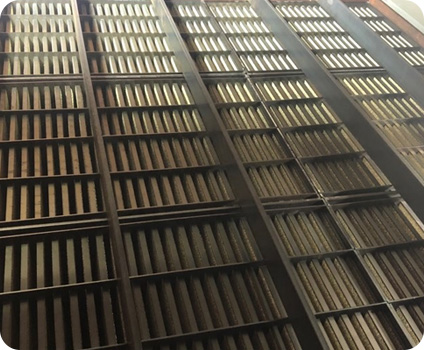

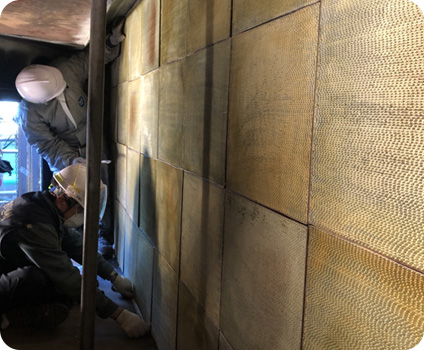

Installed SCR catalyst

  • 100 Mw Co-gen Power plant
  • 60 Mw Co-gen Power plant
  • HUCHEMS and other petrochemical plant

Metal corrugate support SCR Catalyst

Installed SCR catalyst

  • 100 Mw Co-gen Power plant
  • LOTTE Chemical – Heavy fuel Power plant
  • LOTTE Chemical PC Boiler and others

Advantages of Cu-Zeolite Catalysts (Low-Temperature Catalysts)

  • Cu-Zeolite catalysts contain Cu²⁺ ions precisely exchanged within the zeolite pore structure, providing excellent NOx conversion efficiency of over 90% in the temperature range of 150°C to 200°C.
  • They initiate catalytic reactions rapidly even under cold-start conditions or at low exhaust gas temperatures, while maintaining consistently high catalytic activity in the low-temperature range.

Advantages of Fe-Zeolite Catalysts (High-Temperature Catalysts)

  • Excellent Thermal Stability at High Temperatures: Maintains high NOx removal efficiency in the 400°C to 600°C temperature range without degradation of the active structure.
  • High Cost-Effectiveness: The ion-exchange process is relatively simple, and the relatively low cost of iron (Fe) raw materials enhances overall cost competitiveness.

Cu-Zeolite & Fe-Zeolite Characteristics

Comparison Item Cu-Zeolite (Low-Temperature) Fe-Zeolite (High-Temperature)
Primary Operating Temperature Window 150°C–200°C (Excellent performance in the low-temperature range) 400°C – 600°C (Excellent performance in the high-temperature range)
Low-Temperature Reactivity (Cold Start) Very High (Over 90% NOx removal below 200°C) Low (Limited catalytic activity below 300°C)
High-Temperature Stability & NH₃ Selectivity Efficiency decreases above 450°C. Excellent (Maintains high NH₃ selectivity even at 600°C)
Manufacturing Process & Cost Precise Cu ion-exchange process
(Relatively high cost)
Simple Fe loading process
(Highly cost-effective)
Primary Target Applications Low-temperature exhaust gas, cold-start conditions, low-temperature boilers, downstream of incinerators,
and other exhaust gas conditions requiring high catalytic activity at low temperatures
Gas turbines, incinerators, GDI engines, large-scale industrial facilities
